04 April 2012

Pipeline Construction

Welding of the Wesauking Pipeline has progressed to the west side of Joyce Road, near our barn. I climbed to the top of our barn's silo to get a wide angle view of the pipeline construction on Maureen Brady's property. (Click on photo to enlarge the image)

View of work from the silo.

Pipeline welding near the wetland area on Maureen's property.

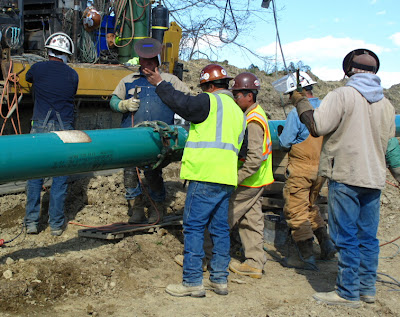

Aligning a pipe joint with an alignment jig prior to welding.

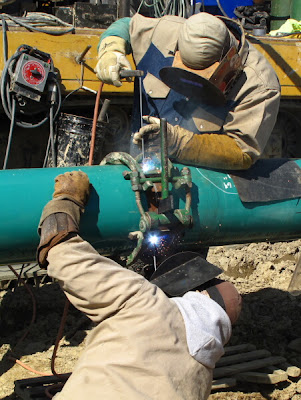

Tack welding the joint while the alignment jig holds the pipe in position.

The alignment jig is removed and the joint is welded.

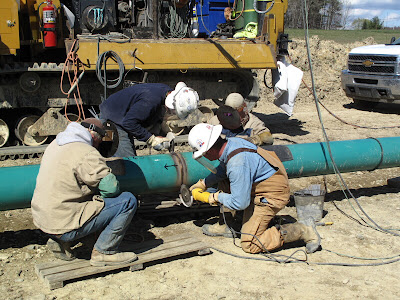

Cleaning the weld for inspection and another layer of weld.
